ODP-DC30
ODP series is an outdoor integrated communication switching power supply with -48VDC output.This film mainly introduces 3000W product performance indexThis product sets rectifier output, AC-DC lightni
- Embedded Power：

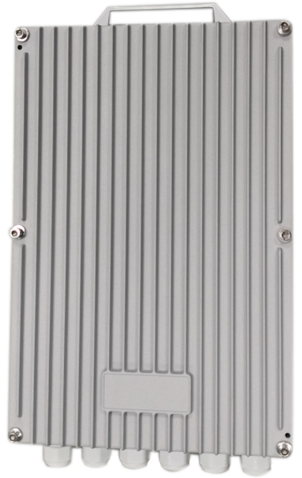

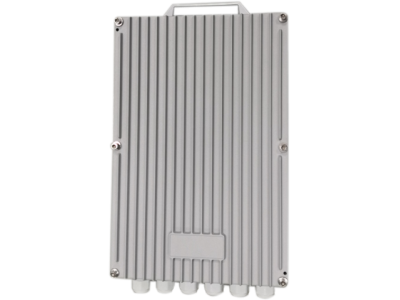

ODP series is an outdoor integrated communication switching power supply with -48VDC output.
This product sets rectifier output, AC-DC lightning protection, battery management, distribution protection, intelligent monitoring, Bluetooth communication and other functions in one. Fully sealed natural heat dissipation design, IP65 protection grade, with high reliability and good maintainability.

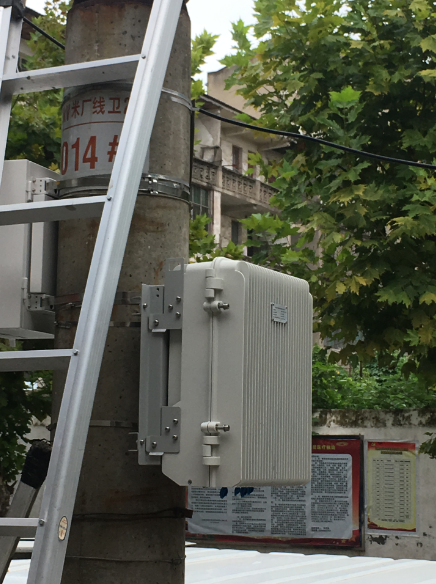

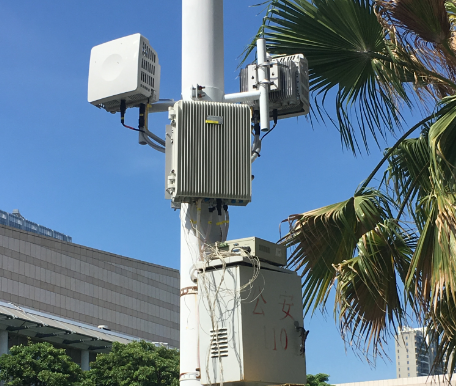

This product is suitable for power supply of wireless communication base station and can be used with lithium battery within the capacity range of -48VDC / 10AH ~ 50AH.
Item | Spec. | |||
In put | Voltage Range | AC 100 ~ 240V | ||
Frequency | 50/60Hz(47 ~ 63Hz) | |||
Pole | Single | |||
out Put | Power | 2000W(200V input), 1500W(100V input) | ||
Rated Vltg. | Current | 53.3V/37.5A (Battery Including charge Current) | ||
Port | input 1, output 3, Alarm port | |||
E N v I R o | SURGE | Voltage | 6KV (1.2 X 50?) | KSC IEC 61000-4-5 |
Current | 3KA (8.0 X 20?) | |||
Operating Temperature | -30℃ ~ 50℃ | |||
Operating Humidity | 0% ~ 90% | |||
Storage temp.／humi. | -30℃ ~ 50℃ / 0% ~ 90% | |||
Cooling Methode | Conduction Cooling | |||
F U N C T I O N | Monitoring | Input voltage& current,Output voltage¤t. System temperature, Alarm history | ||
Control | Output voltage, Alarm | |||
Alarm | Contact switch portor Ethernet | |||
Size | 450mm * 263mm * 100mm | |||
Weight | Apprx. 8 Kg | |||
Item | Spec. | Remark | |
Electrical Charcteristic | Nominal Vltg.(V) | 46.8V | 3.6V/cell |
Nominal Capa.(Ah) | 40Ah | ||
Charge Methode | CC/CV | ||
Charging Vltg. | 53.3V | ||
Cut off(V)_average | 36.4V | By BMS | |
Charge Current(Max) | 20A | ||
Discharge Current(Max) | 40A | ||
Output (Function) | Power(+,-),= 2pin | ||
Monitoring port | |||
Mechnical Characteristic | Size (mm) | TBD | |
Weight | Under 20Kg | ||
Battery Pack | 13P 14S | LG Chem. 18650 MH1(LI-ION) Cell | |
Enviroment Spec. | Charge Temperature. | 0~50℃ | |
Discharge Temperature. | -20~60℃ | ||
Storage | -20~60℃ / 1 Month. | ||
-20~45℃ / 3 Month. | |||
-20~20℃ / 1Year. | |||
Storage Humididy. | 20~90%RH |
